Product Details

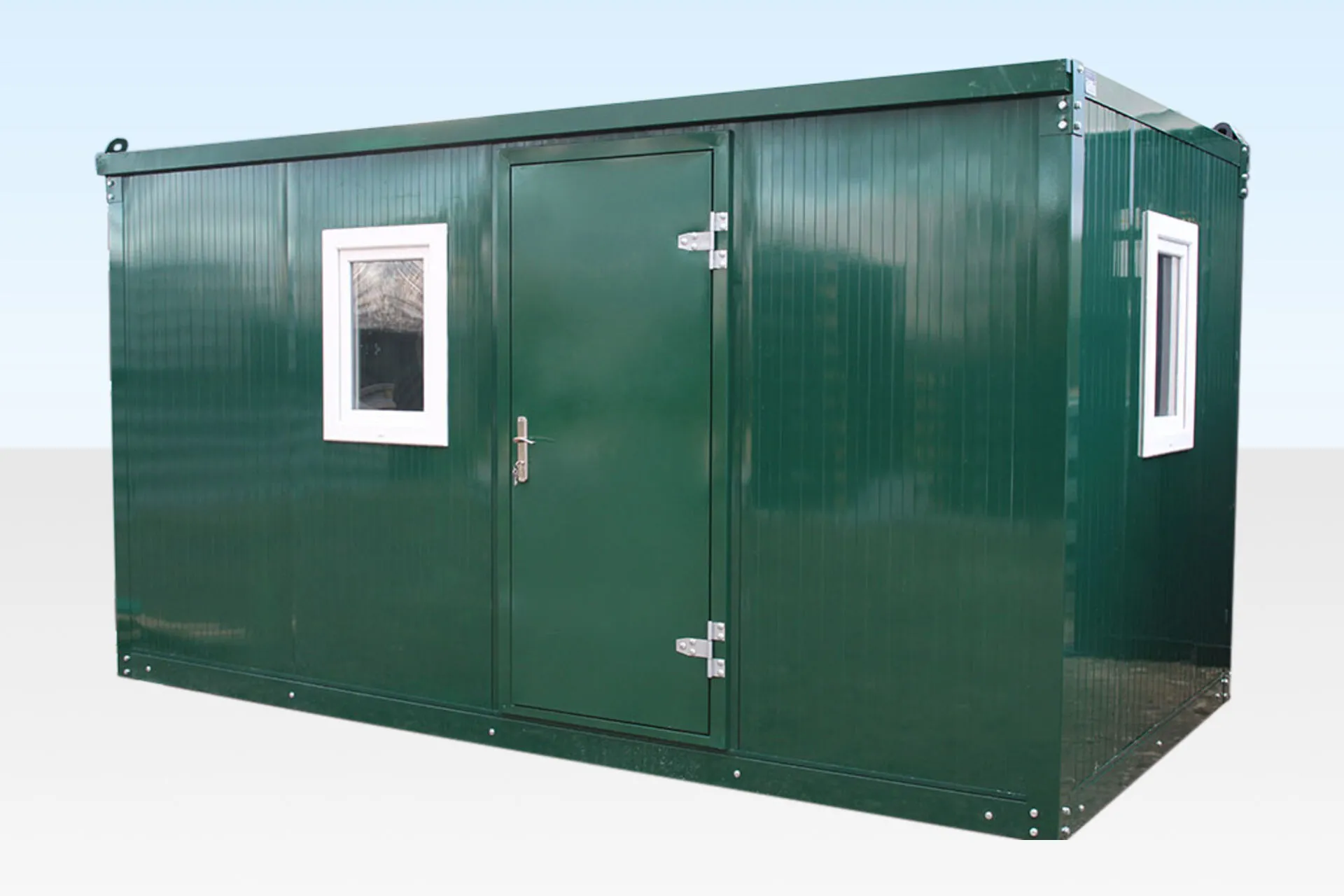

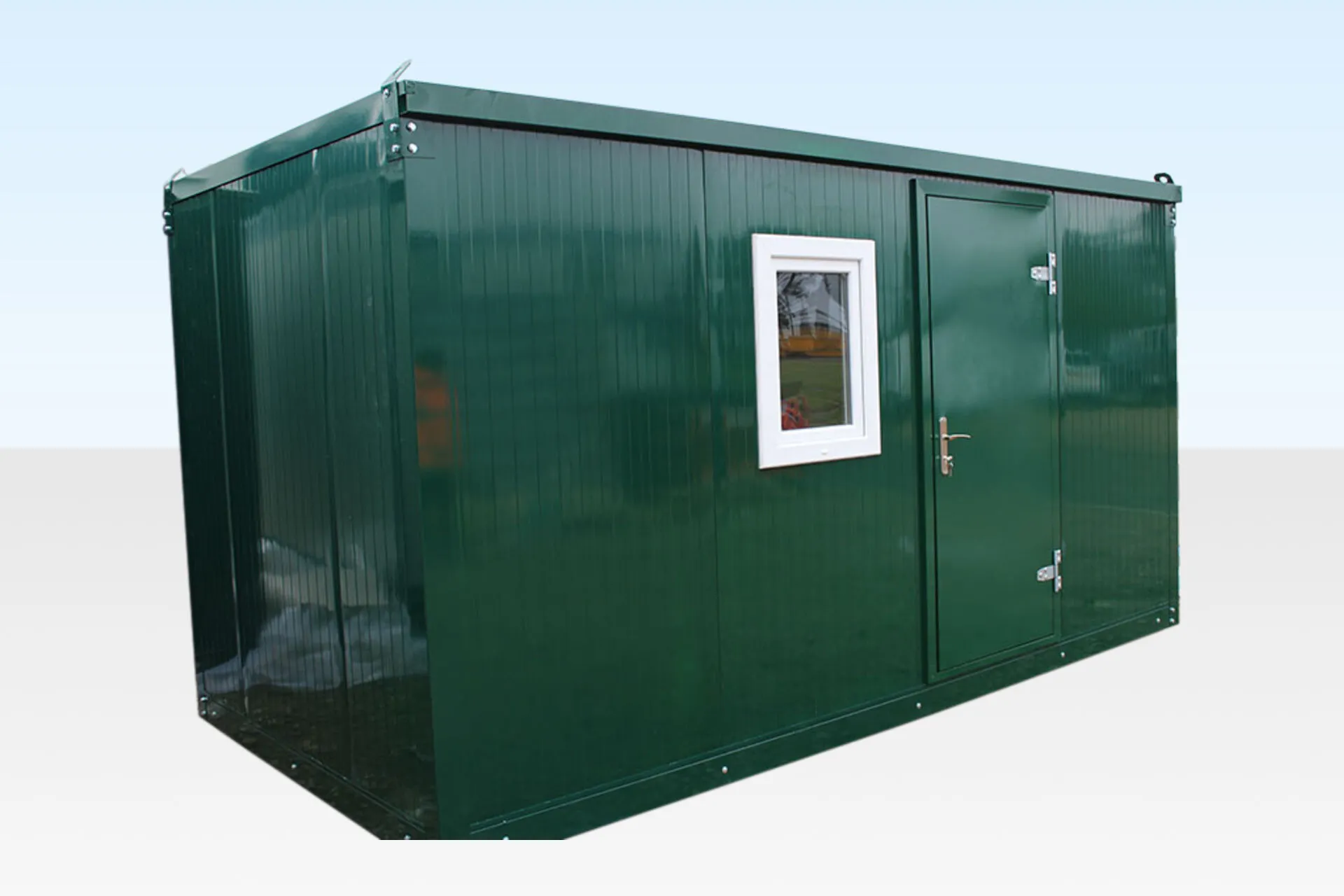

This 4m flat packed office cabin is available for delivery.
It arrives flat packed, is man portable and is ideal for erecting in previously inaccessible locations. It’s simple assembly (with a socket set).
Manufactured from fully galvanized steel (no rusting), our 4m office cabin has attractive smooth paneling, finished in a powder coated moss green on the outside and an off white powder coat on the inside.
The unit has a guttered roof and features two double glazed u-PVC windows fitted as standard. The interior of the insulated office cabin is pleasantly light and airy with a durable and smart wall finish – suitable for surface mounted electrics.
Once assembled the unit can be moved by crane / forklift or demounted back into it’s neat flat-pack form for storage purposes. This cabin can be linked side to side or end to end to provide additional space at any time after initial assembly.
PRODUCT SPECIFICATIONS
| External Length (m) |
4.38 |
| External Width (m) |
2.31 |
| External Height (m) |
2.35 |
| Internal Length (m) |
4.26 |
| Internal Width (m) |
2.19 |
| Internal Height (m) |
2.15 |
| Door Width (m) |
0.79 |
| Door Height (m) |
1.97 |
| Height (Flatpacked) (mm) |
450 |
| Length (Flatpacked) (m) |
4.38 |
| Width (Flatpacked) (m) |
2.31 |
| No. of Windows |
2 |
| Weight (Flatpacked) (kg) |
1065 |
| Weight Heaviest Part (when Demounted) (kg) |
74 |
| Floor Type |
18mm Marine Plywood |
| Floor Loading |
250kg/m2 evenly distributed |
| Internal Floor Covering |
2mm PVC Linoleum (flash point B1 difficult to burn, smoke density Q1) |
| Internal Wall Covering |
0.60mm galvanised steel electrostatic powder coated in RAL9002 |
| Insulation |
50mm EPS insulation |
| Electrical Requirements. (Amps) |
32amp |
